Stedi-Eye Monolite Gyro Stabilized

SKU# SE-Mono

Be the first to review this product

Availability: In stock

Regular Price: $5,999.00

Special Price: $3,490.00

Quick Overview

The Monolite provides mission critical unsurpassed resolution in a rugged, lightweigt, stabilized, day observation and surveillance device. The Monolite removes up to 90% of image motion caused by hand tremor and platform vibration, providing exceptional viewing from all types of moving vessels, aircraft, and vehicles.

Click on image to zoom

More Views

Details

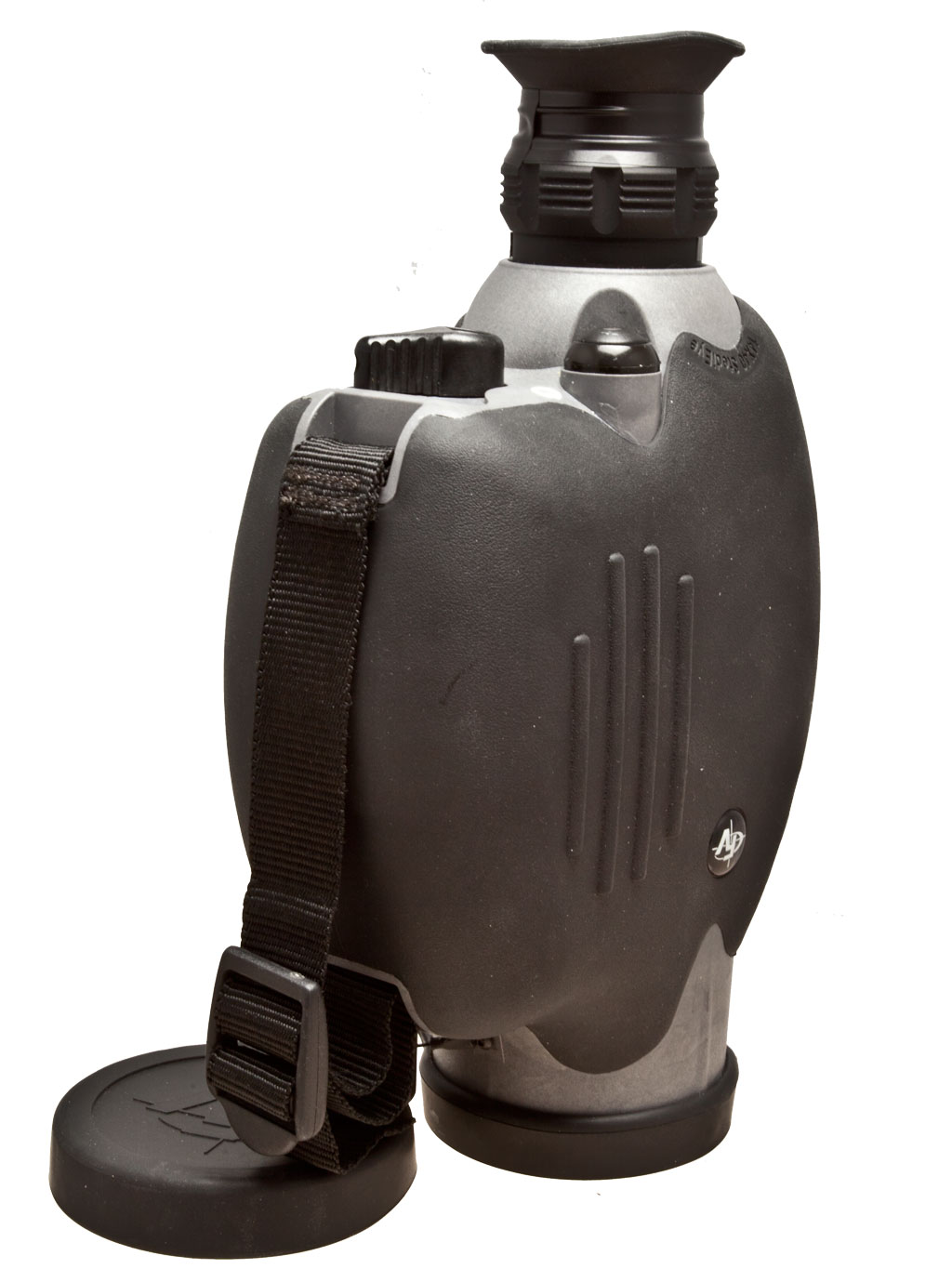

Stedi-Eye Monolite GYRO Stabilized Monocular Key Features

The Monolite provides mission critical unsurpassed resolution in a rugged, lightweigt, stabilized, day observation and surveillance device. The Monolite removes up to 90% of image motion caused by hand tremor and platform vibration, providing exceptional viewing from all types of moving vessels, aircraft, and vehicles.

Features

  • 14 power magnification
  • Gyro Stabilized
  • Up to 98% Reduction of Image Motion
  • 100% Sealed, Submersible and Waterproof

Benefis

  • Unsurpassed Resolution
  • Highest Scan Rate Available
  • Greater Field of View
  • Operates Continuously
  • Lightweight
  • Buoyant
  • 4.3 Arc Seconds
  • 8 Degrees/Second
  • 4.3 Degrees
  • >8 Hours on (1) CR-123
  • 2.0lbs (0.9kg)

Optional Accessories

  • Neck Strap
  • Polarizing Filter
  • Haze Filter
  • External Power Adapter
  • External Power Cord
  • IR Cut Filter

Kit Options

Pouch Option Includes:

  • Soft-Sided Field Carrying Case w/ Strap
  • Objective Lens Cap
  • (2) CR-123 Batteries
  • Operator's Manual
  • Cleaning Kit

Hard Case Option:

  • Molded, High-Impact, Foam-Lined Carrying Case
  • Objective Lens Cap
  • (2) CR-123 Batteries
  • Operator's Manual
  • Cleaning Kit

Hard Case & Pouch Option:

  • Molded, High-Impact, Foam-Lined Carrying Case
  • Soft-Sided Field Carrying Case w/ Strap
  • Objective Lens Cap
  • (2) CR-123 Batteries
  • Operator's Manual
  • Cleaning Kit



Additional Information
Specs
Specifications
Magnification 14x
Sight exit aperture 3mm
Objective Diameter 41mm
Field of View (80m @ 1,000m) 4.3°
Resolution 4.3 Arc/Sec
Stabilization Freedom ±8°
Focus Adjustment ±4 Diopters
Scan Rate 8°/Sec
Power (Internal) (1) CR-123 Battery
Weight 2.0 lbs (0.9 kg)

Dimensions
Length 8.25 inches (210 mm)
Width 5.125 inches (130 mm)
Height 2.675 inches (68 mm)
